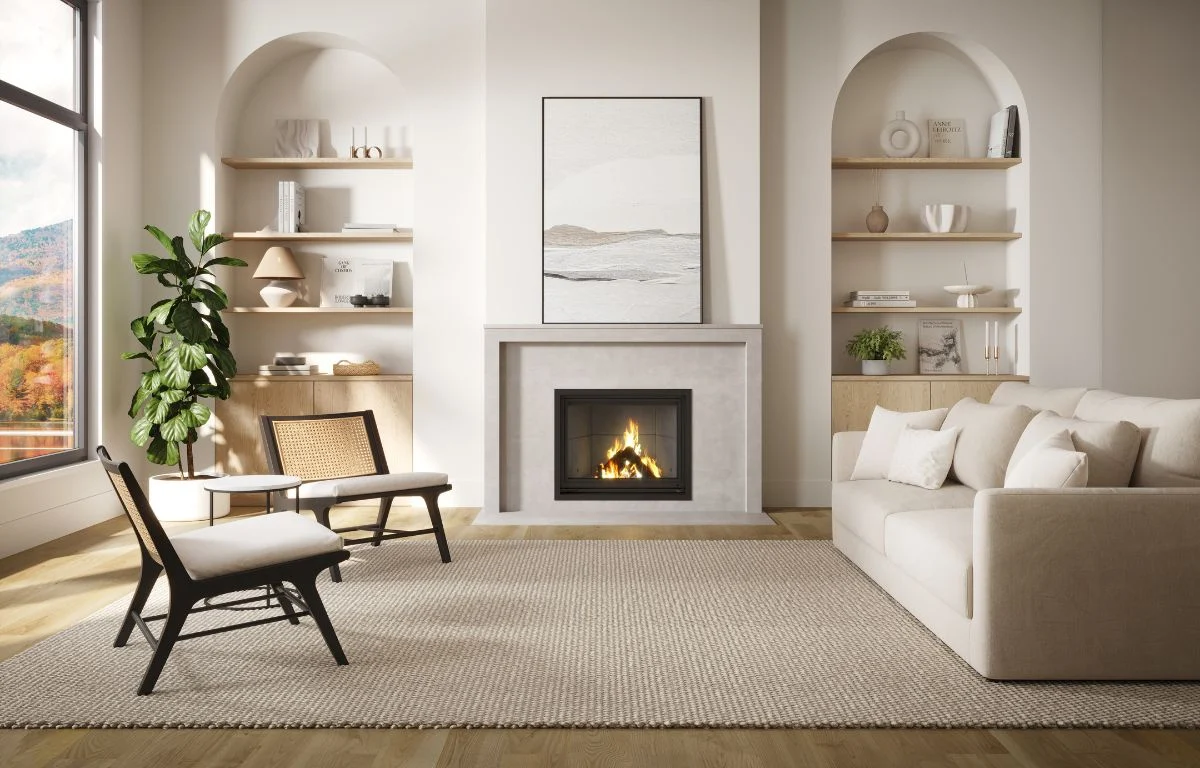

The Antoinette wood fireplace redefines comfort and style with its modern and streamlined design. Featuring clean lines and a spacious glass surface, it provides a stunning view of the flames, adding warmth to your relaxation moments. Its versatile design seamlessly adapts to any interior configuration, creating a welcoming and sophisticated ambiance.
The standout feature of this wood fireplace is its ingenious guillotine-style door and spark guard system. Crafted with exceptional attention to detail and premium materials, this mechanism allows for smooth and effortless operation. The door and firescreen, equipped with a removable handle, discreetly slide under the hearth, providing easy and secure access to fuel the fire.
While primarily designed for ambiance, the Antoinette effectively reduces particle emissions, meeting Phase II EPA voluntary program standards. It is 70% cleaner than uncertified traditional decorative fireplaces, offering a cozy atmosphere without compromising air quality.
What’s Included
- 52″ Decorative Wood Fireplace
- Contemporary Moulded Refractory Brick Panels
- Straight Narrow Overlap Finishing Trim
- Guillotine Door with Ceramic Glass
- Cast Iron Andirons
- Fresh Air Intake Adapter
Not Included (Sold Separately)
- 4″Ø Fresh Air Intake Register With Airtight Damper
- Glass Hearth Pad
- High Temperature Silicone
- Paint
- Fireplace Gloves
- Dry Cleaning Pad
- Wood Appliance Glass Cleaner
- Digital Moisture Reader
- Stainless Steel Cooking Grate
- Fire Starter
- Fire Lighting Gel
- Wood Storage
Features
- Large glass surface
- Sleek faceplate
- Guillotine door
- Decorative Fireplaces for Ambiance While Being Environmentally Friendly — While giving you the ambiance and comfort of a wood fire, these fireplaces give you elegance without compromising air quality. These fireplaces qualify for Phase II of the EPA voluntary program of decorative wood-burning fireplaces which is approximately 70% cleaner than unqualified models.
Specifications
| Model Number | FP7D |
| UPC | 773388253107 |
| Combustion Technology | Non-catalytic |
| Fuel Type | Dry cordwood (16″ recommended) |
| Recommended Heating Area | <1,000 sq. ft. |
| Overall Firebox Volume | 5.3 cu. ft. |
| Average particulate emissions rate | 4.2 g/kg |
| Burn Rate | >5 kg/h (>11 lb/h) |
| High-Efficiency Certified Appliance | Low Mass |
| Maximum Log Length | 18″ |
| Log Positioning | Loading over width |
| Chimney Diameter | 8″ |
| Flue Outlet Diameter | 8″ |
| Type Of Chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum Chimney Height (Feet) | 15′ |
| Approved For A Mobile Home Installation | No |
| Shipping Weight | 523 lb (238 kg) |
| Door Type | Guillotine, glass with steel frame |
| Glass Type | Ceramic glass |
| Glass Surface – Dimensions (Width x Height) | 29 3/4″ x 19 1/2″ |
| Overall Dimension (Height) | 64 1/8″ |
| Overall Dimension (Width) | 52″ |
| Overall Dimension (Depth) | 27″ |
| Door Opening – Dimension (Height) | 21 1/4″ |
| Door Opening – Dimension (Width) | 33″ |
| Firebox – Dimension (Height) | 21 3/4″ |
| Firebox – Dimension (Width) | 24 1/4″ |
| Firebox – Dimension (Depth) | 11 1/2″ |
| Moulded Refractory Bricks | Yes |
| Cast Iron Andirons | Yes |
| USA Standard (Emissions) | ASTM 2515 / ASTM 2558 |
| USA Standard (Safety) | UL 127 |
| Canadian Standard (Safety) | ULC-S610 |
| Tested And Listed As Per Applicable Standards | By an accredited laboratory (CAN/USA) |
Approved Chimney Types
*Specific components may be required depending on the chimney manufacturer. |
Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner’s manual, catalogues, flyers, magazines and/or web sites). |
