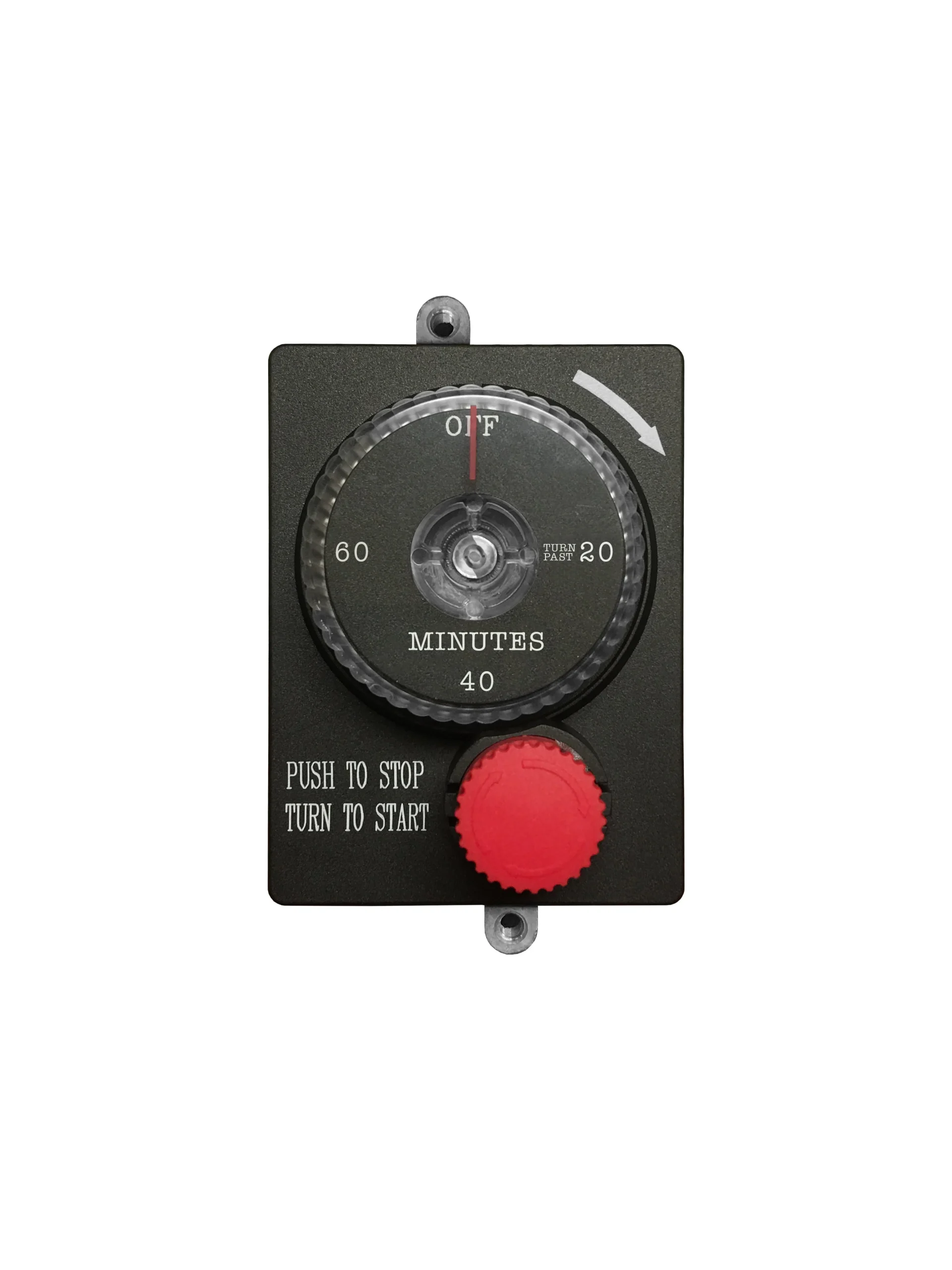

The ESTOP1-0H Gas Timer is an emergency shut-off, mechanical timer, and manual shut-off gas valve designed to be installed on the inlet side of a gas appliance to enable the user to control the time gas is allowed to flow to a gas appliance. This is a mechanical timer (no batteries or power required) that has the ability to control gas flow for 1-hour (60 minutes). In addition, both models have an emergency shut-off (red knob) that enables the user to quickly and easily shut the gas completely OFF, should the need arise.
What’s Included
- Timer
- Mounting Hardware
Features
- Mechanical Timer
- Emergency Shut-off
- Have fine mesh screens to filter any debris
- Designed for Natural or LP Gas (no conversion required)
Specifications
| Pipe Size | ½” NPT (2) inlets and (2) outlets |
| CSA Rated Capacity | 165,000 Btu/Hr at 1” Pressure Drop (NG) |
| Timer Accuracy | 60 Min. +/- 15% or 3 Hrs.+/- 15% |
| Multiple Mounting Holes | Uses 3/16-24 machine threads |
| CSA Certified | Tested to ANSI Z21.21; CSA 6.5 |
| Maximum Pressure | ½” PSI |
| Ambient Temperature | 0°F to 175°F (79°C) |
| Inlets | Have fine mesh screens to filter any debris |
| Designed For | Natural or LP Gas (no conversion required) |
| Electrical | None |
