The Osburn Inspire must be installed into a masonry fireplace. This wood insert will bring an unmatched modernism to your decor, in addition to perfectly combining functionality and comfort. The impeccable lines display a timeless style while guaranteeing reliability and durability.
Whether you want to enjoy a broad view of the flames in the comfort of your living room during a romantic evening or simply to benefit from impressive heat in cold weather, the Inspire will charm you as much by its aesthetics as its 77% optimal performance. With its particle emission rate as low as 1.54 g/h and its high-performance combustion system, environmentalists have never been as happy with wood heating. The Inspire Collection celebrates our past and embraces our future as our team is committed more than ever to our industry’s contribution to sustainability. A dream opportunity on the latest trends!
What’s Included
- Inspire 2000 Wood Insert Assembly
- 30″ x 25.125″ Faceplate
NotIncluded
- Mouled refractory panel kit for insert
- 5″Ø fresh air intake kit oval
- 5″Ø fresh air intake register with airtight damper
- Offset liner adaptor
Features
- Construction & Durability: Made from black metallic carbon steel, providing long-term durability
- Heat Distribution: Equipped with heavy-duty ceramic bricks for even heat distribution
- Combustion Efficiency: Features a unique vacuum design for efficient combustion, reducing creosote build-up on the glass
- Secondary Air System: Creates a second combustion zone to enhance fuel efficiency and cleaner burning
- Glass Door: Comes with a large, single glass door with a cast iron frame
- Fuel Type: Uses dry cordwood with a recommended maximum log length
Specifications
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20″ |
| Log positioning | Loading over width |
| Chimney diameter | 6″ |
| Flue outlet diameter | 6″ |
| Type of chimney | Liner – ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12′ |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 435 lb (197 kg) |
| Door type | Single, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 20 1/4″ X 9 1/2″ |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 176 |
| Overall dimension (Height) | 24.375″ |
| Overall dimension (Width) | 28.5″ |
| Overall dimension (Depth) | 20.875″ |
| Door opening – dimension (Height) | 8 1/4″ |
| Door opening – dimension (Width) | 20″ |
| Firebox – dimension (Height) | 11 3/4″ |
| Firebox – dimension (Width) | 21″ |
| Firebox – dimension (Depth) | 16 3/4″ |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16″ |
| Steel thickness – top | 3/8″ |
| Fireplace opening – minimum (Height) | 24 5/8″ |
| Fireplace opening – minimum (Width) | 29″ |
| Fireplace opening – minimum (Depth) | 20 3/4″ |
| USA standard (emissions) | EPA Method 28 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
Appliance Performance
|
Fuel type |
Dry cordwood (16″ recommended) |
|
|
Recommended heating area-ft² |
500 – 2,100 |
|
|
Overall firebox volume-ft³ |
2.4 |
|
|
EPA loading volume-ft³ |
1.95 |
|
|
Maximum burn time |
8 h |
|
|
Maximum heat output-dry cordwood |
75,000 BTU/h (22 kW) |
|
|
Overall heat output rate < |
14,200 BTU/h (4.16 kW) to 44,500 BTU/h (13.04 kW) |
|
|
Average overall efficiency (dry cordwood) |
72 % (HHV) |
77 % (LHV) |
|
Optimum overall efficiency |
79 % |
|
|
Optimum heat transfer efficiency |
76 % |
|
|
Average particulate emissions rate |
2.3 g/h |
|
|
Average CO |
69 g/h |
Clearance
| Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
| Canada | United-States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84″ | 84″ |
| Clearance – combustible side mantle to unit | 9″ | 9″ |
| Clearance – combustible top mantle to unit | 27″ | 27″ |
| Clearance – combustible side wall to unit | 16″ | 16″ |
| Clearance – minimum floor protection in front of the appliance | 18” | 16” |
| Clearance – from the top of the unit to the shelf | 27″ | |
| Clearance – from the top of the insert to the shelf | 27″ |
Technical Drawings & Dimensions
Configuration
| Inspire 2000 Wood Insert with Narrow Faceplate (U Shape) |
| Inspire 2000 Wood Insert with 32” X 50” Cuttable Faceplate (16ga) |

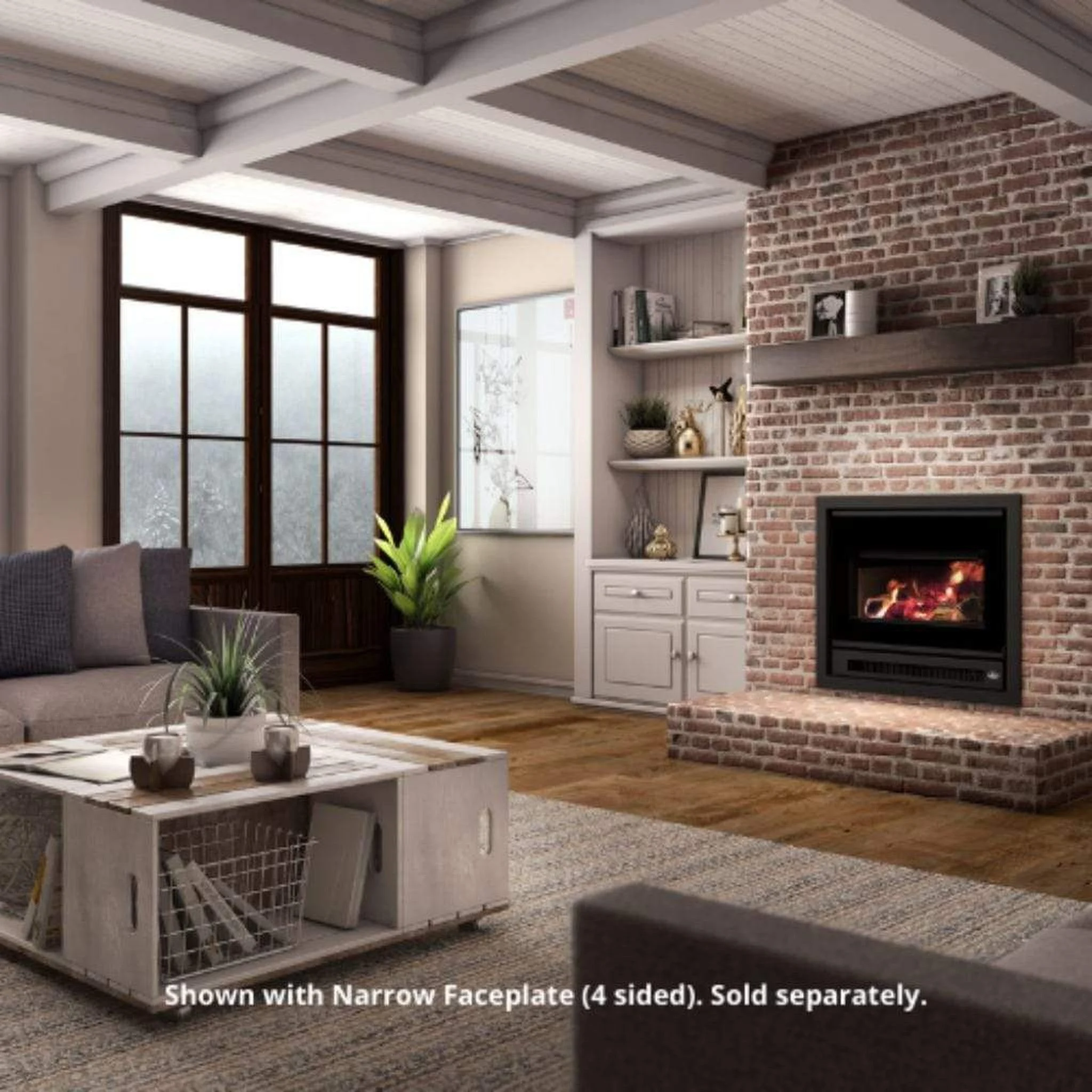

| Inspire 2000 Wood Insert with Narrow Faceplate (4 sided) |
