Biomass factory-built chimney and vent intended for use with Biomass fuel appliances approved for Type L low-temperature venting systems in accordance with “Standard for Chimneys, Fireplaces, Vents, and Solid-Fuel Burning Appliances,” NFPA 211, and the International Mechanical Code.
Biomass Chimney features a corrosion-resistant 430 stainless flue and galvanized steel casing designed to operate in highly corrosive biofuel applications. Our cutting-edge positive twist-lock design, locking tabs, and rope gasket at each joint, prevent fly ash leakage and reduces installation time.
What’s Included

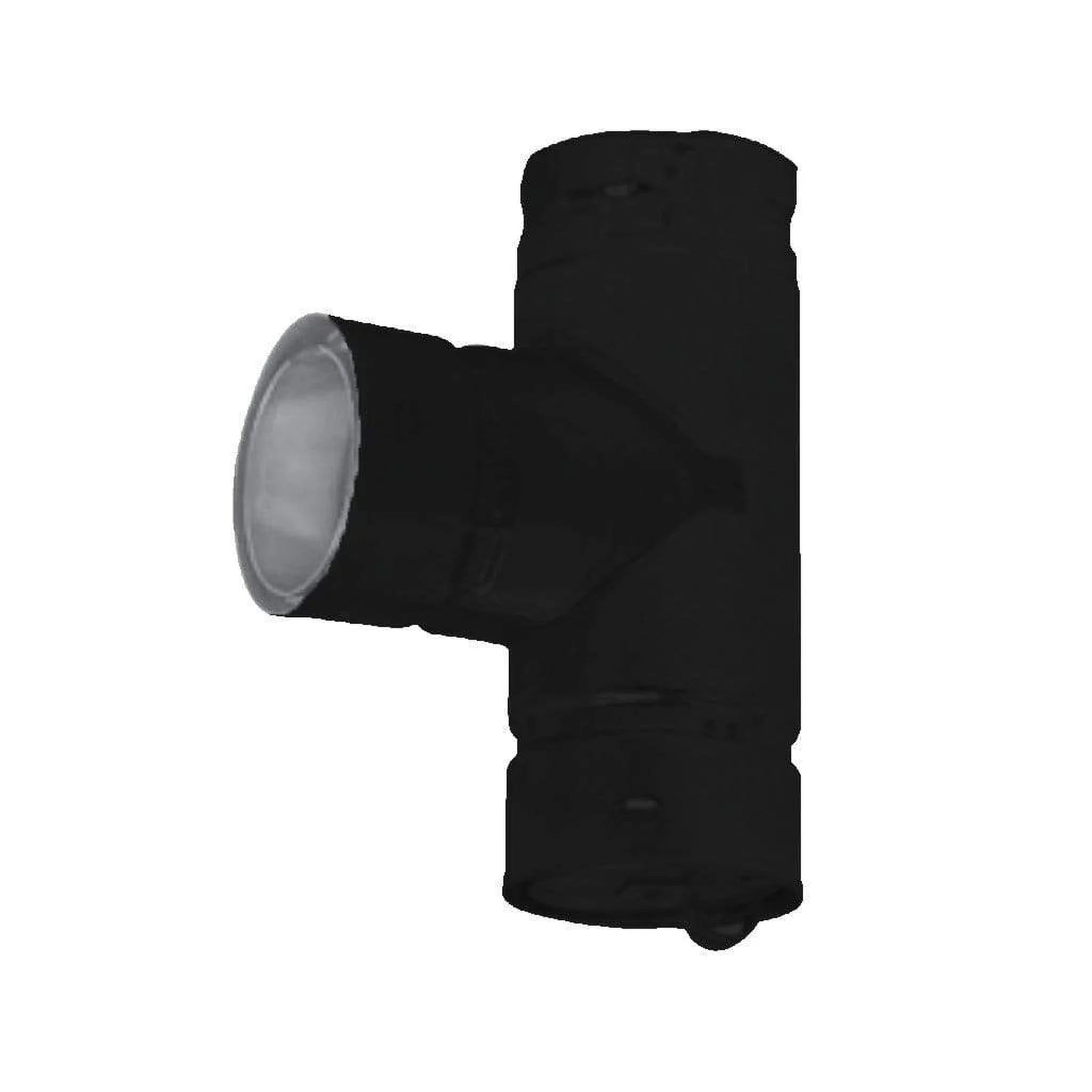

- 5″ Standard Tee With Pull-Off Cap
Features
- A tee is used to transition from horizontal to vertical inside or to an exterior chimney that is mounted to a tee support.
- Pipe and fittings in 3″ and 4″ diameters.
- The factory-built double wall construction uses 430 stainless steel flue and galvanized steel outer casing.
- Positive twist lock for easy assembly and disassembly without tools and without damage.
- Rope gaskets at each joint to prevent fly ash leakage.
- The pipe overlaps 1-1/2″ when joined together. Assembled length is 1-1/2″ less than the listed length
Specifications
| Application | For use with biomass fuels such as pellet, corn, wheat or other grassy and woody plants as specified by appliance manufacturers. |
| Clearance | Minimum 3″ clearance to combustibles |
| Listings/Standards | NFPA 211 UL 641 |
| Flue Material | 430 stainless Steel |
| Casing Material | Galvanized Steel |
| Diameter | 5.5″ |
| Height | 11.13″ |
| Width | 8.5″ |
| Color | Black |
