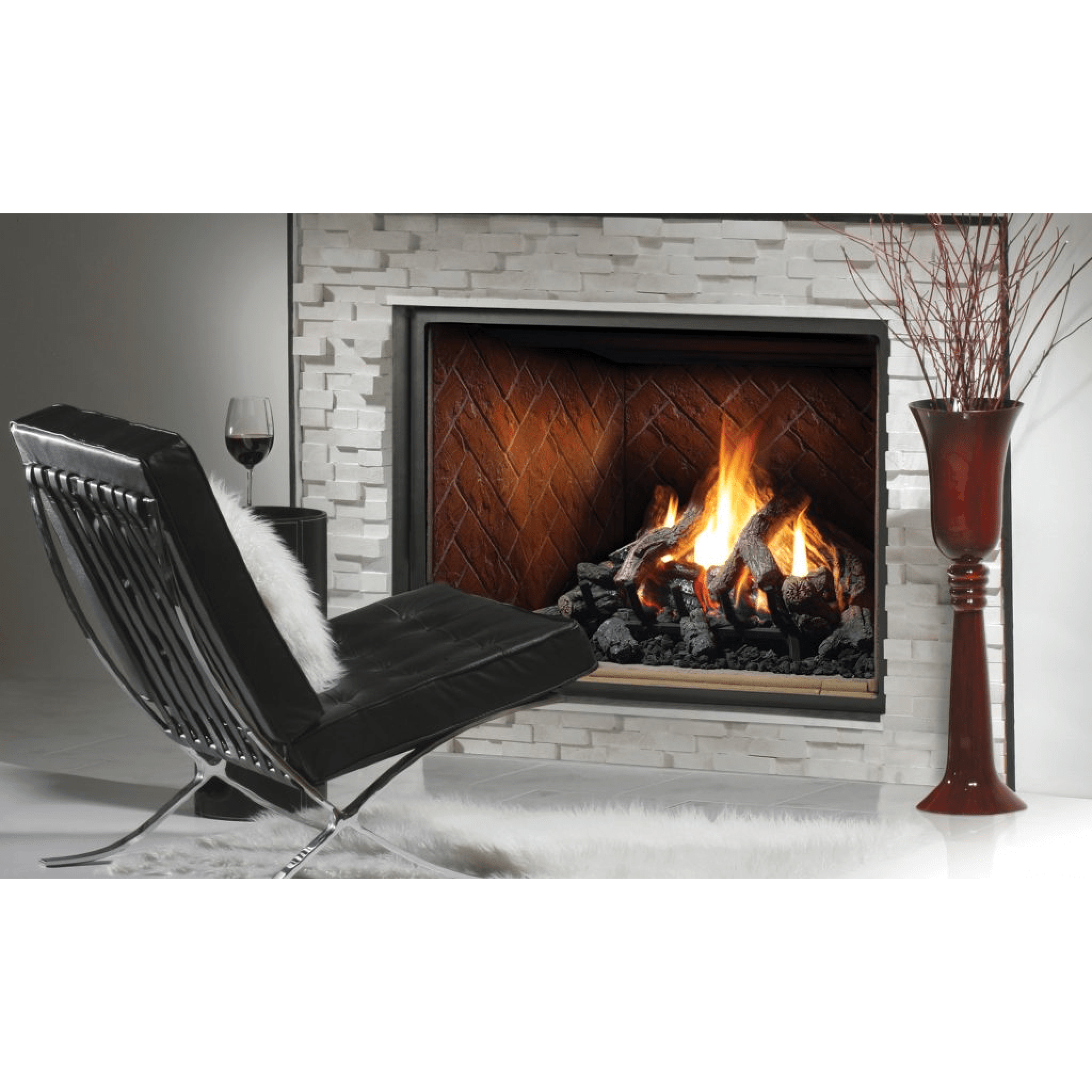

The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home.

A gas direct vent fireplace is that the most popular choice by both builders and homeowners for new construction or a remodel. These fireplaces burn efficiently enough to be a heat source but not too efficient to where the fire lacks realism.

This fireplace is hugely customizable. Choose one or all of the many customizable options to create the fireplace that’s right for your home. The millivolt valve system doesn’t use electricity, instead, it’s a standing pilot which allows operation during a power outage with hi-low heat and flame adjustment. the design of this fireplace allows for a totally sealed system that doesn’t compromise the air quality of your home.

Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long-lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.

What’s Included

  • HBZDV4736 Gas Fireplace
  • Dual Burner
  • Safety Screen
  • Wall Switch
  • Tempered Glass
  • 4/7″ Sloped Flue
  • Framing (Louvered)
  • SIT Valve with Hi/Lo Adjustment

Not Included (Sold Separately)

  • Fiber Split Oak Log Set (Required)
  • Grill Kit Or Designer Clean View Kit (Required)
  • Fan Kit w/Variable Speed Wall Mount Control
  • Thermostats and Remote Controls
  • Log Bits (Small Six Piece Kit)
  • Brick Or Porcelain Liners
  • Gas Conversion Kit

Features

  • Tempered glass
  • Safety screen barrier
  • Zero clearance fireplace
  • Your choice of natural gas or propane
  • Dual burner with Realistic Flame Pattern
  • A flame sensor that constantly monitors the pilot flame
  • Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment

Specifications

Model HBZDV4736LP
Fuel Propane
Flue Top
Gas Control Millivolt
Input Max. 36,000 BTU
Input Min. 30,000 BTU
FE (p.4.1-02)% 53.79% / 54.9%
Glass Type Tempered
Venting 4/7″ and 4/6 5/8″ Hard Pipe
Certification Heater
Power Vent Yes

Dimensions

Width 47″
Height 43″
Depth 19″
Viewing Area Width 39″
Viewing Area Height 26″
Glass Width 42″
Glass Height 29″
Actual Width (CVCK) 48″
Actual Height (CVCK) 49″
Actual Depth (CVCK) 22″
Actual Width (Louvers) 47″
Actual Height (Louvers) 43″
Actual Depth (Louvers) 19″
