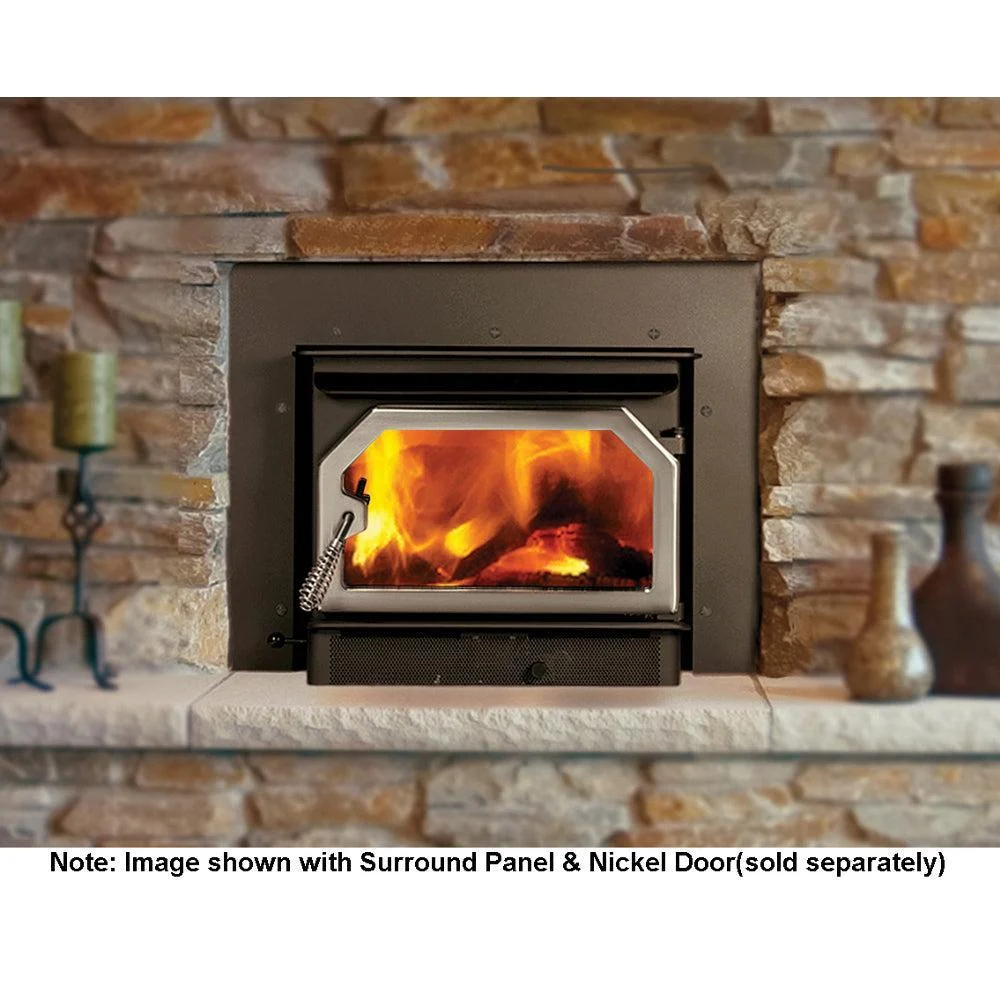

Country Stoves Collection wood-burning inserts offer the ultimate in clean-burning, reliable heat to warm your home and your family. Premium-grade materials, quality craftsmanship, and sophisticated technology ensure that every Country Stoves Collection insert we make will provide you and your family a lifetime of warmth. Each insert is customizable with an array of options to fit your needs.

What’s Included

• Striker C160 Wood Burning Fireplace Insert Assembly
• Traditional Door

Not Included (sold separately)

• Surround Panel Required To Complete Unit
• Chimney Components

Features

• Compact 1.6 cubic foot firebox interior accepts up to 18” logs.
• 55,600 BTU’s/hour and heats up to 600 – 1,300 square feet.
• Integrated air wash system helps keep the glass clean during use for an improved view of the fire.
• Ceramic glass for extra strength and optimum heat transfer.
• Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
• Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
• High-density firebrick retains heat longer, resulting in increased efficiency.
• One-touch control ensures easy operation and comfort.
• Choice of surround panels to cover the surrounding fireplace opening (1-required).
• Optional decorative door faceplates in Brushed Nickel or Nickel allow customization to your style.
• Optional 160-CFM variable-speed blower quickly moves heat from the insert into your room.
• EPA-certified and Washington State-approved for clean and efficient operation.

Specifications

Technical Drawings

Clearance

* Reduced clearances may be available for A, B, C, and D dimensions by using an optional mantel and/or side shields. Consult with your Innovative Hearth Products dealer for the dimensions of the shields. Clearances can also be reduced for A, B, C and D dimensions per NFPA 211 – latest edition, Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances (in Canada CSA B365 – latest edition). See section on “Reduction of Appliance Clearance with Specified Forms of Protection.”
** Side view of optional mantel deflector shown.
(1)Hearth extension reductions: 2” (51mm) reduction for 2” (51mm) raised hearth. (USA) 16” minimum hearth extension on all stoves as measured from the door opening of the unit. (Canada) 18”(450mm) minimum hearth extension on all stoves as measured from the door opening of the unit. Minimum distance of floor protection to the side = 8” (200mm). This is measured from the sides of the door opening in the USA and from the sides of the insert in Canada.
(2) J = Maximum lintel depth without flue offset or smoke deflector.
Note: Facing material that projects more than 3/4” (19mm) from the wall is considered a mantel or side wall.

Minimum Fireplace Size
