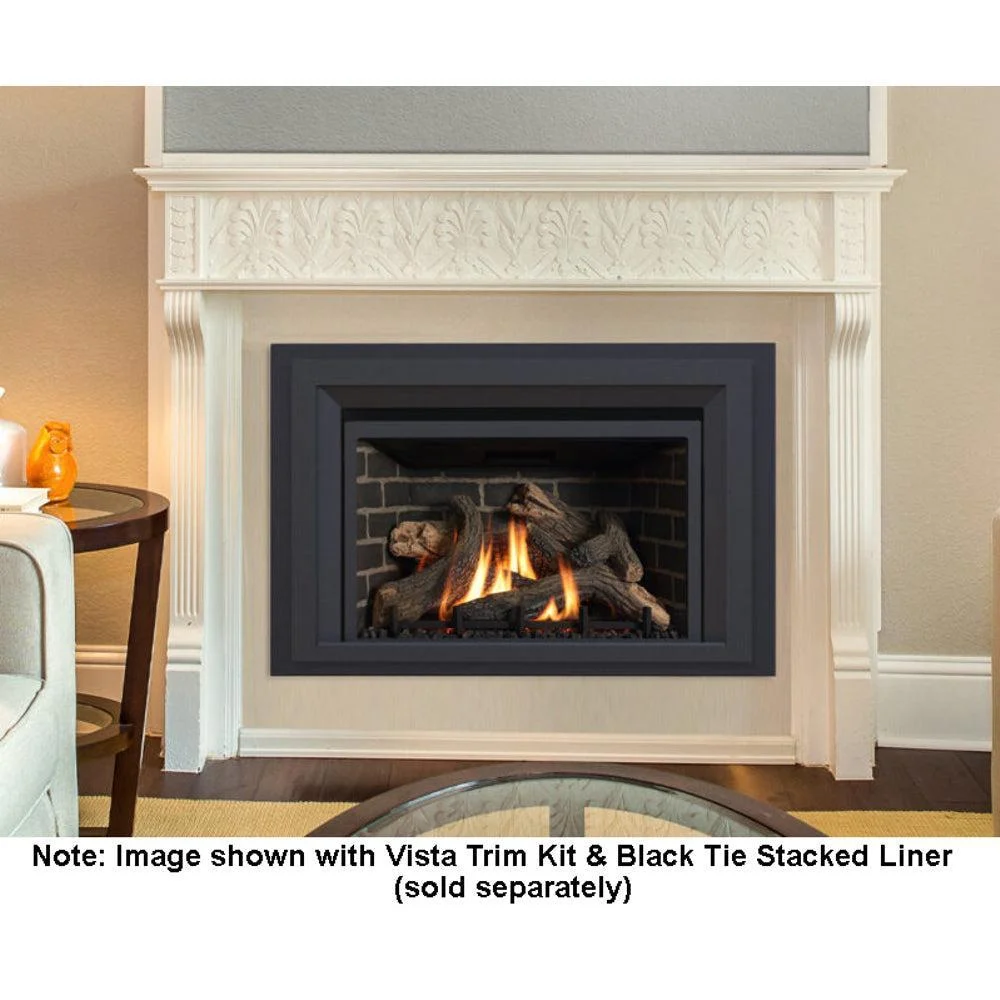

The Madison Park gas fireplace insert brings convenience and efficient heating to an existing wood-burning fireplace. Listed to fit zero-clearance factory-built and masonry fireplaces, the Madison Park gas insert turns your standard wood burning fireplace into a cost-effective heat source that displays a realistic gas fire for brilliant warmth and ambiance.
What’s Included
- Madison Park 32 Fireplace Assembly
- Remote Control
Not Included (sold separately)
- Interior Liners
- Facades
- Trim and Louvers
- LP Conversion Kit
Features
- Electronic ignition system with battery backup—still ignites and heats during a power outage.
- Outstanding heating efficiency for increased comfort and lower operating costs.
- Ceramic glass for optimum heat transfer and a protective screen.
- Beautifully crafted high-definition ceramic fiber log set.
- State-of-the-art burn technology provides the warm glowing appearance of an authentic fire.
- Choose between several distinctive styles of accessory façades to match the look of your existing décor (required).
- Interior selections consist of black reflective porcelain or a variety of ceramic fiber liners (required).
- Factory installed blower with six speed settings to fine tune your heating needs.
- Full-function remote control included (IPI/CPI, thermostat, flame height, blower).
Specifications
| Model |
MPI32-B |
| BTU |
Natural Gas: 34,000 – 23,000
Propane: 34,000 – 28,000 |
| Heating Capacity |
500 – 1,750 sq.ft. |
| AFUE Efficiency |
71% (NG) 74% (LP) |
| EnerGuide (P4) Efficiency |
65% (NG) 70% (LP) |
| Blower |
150 CFM |
| Fuel Type |
Natural Gas |
| Certifications |
ANSI Z21.88 / CSA 2.33, CSA/CGA 2.17 – 2017 and UL 307B |
| Design Style |
Traditional |
| Control Type |
Remote Control |
| Product Dimensions |
W 31.625″ x H 19.375″ x D 15.875″ |
| Weight |
114 lbs. |
Technical Drawings
Minimum Fireplace Sizes Required
| Front Opening Width * |
32″ (813mm) |
| Height |
19-1/2″ (495mm) |
| Rear Width |
22″ (559mm) |
| Depth |
16″ (406mm) |
*The front opening width of the fireplace must be maintained to a 3″ depth into the fireplace firebox.
Minimum Clearances to Combustibles
| A = Mantel |
32″ (813mm) |
| B = Side Wall |
4” (102mm) |
| C = Mantel Depth |
10″ (254mm) |
Hearth Protection
| D = Vertical Distance from base of appliance to Hearth Extension |
0″ (0mm) |
4” (102mm) |
| E = Minimum Horizontal Distance from Front of Appliance |
10″ (254mm) |
0″ (0mm) |
