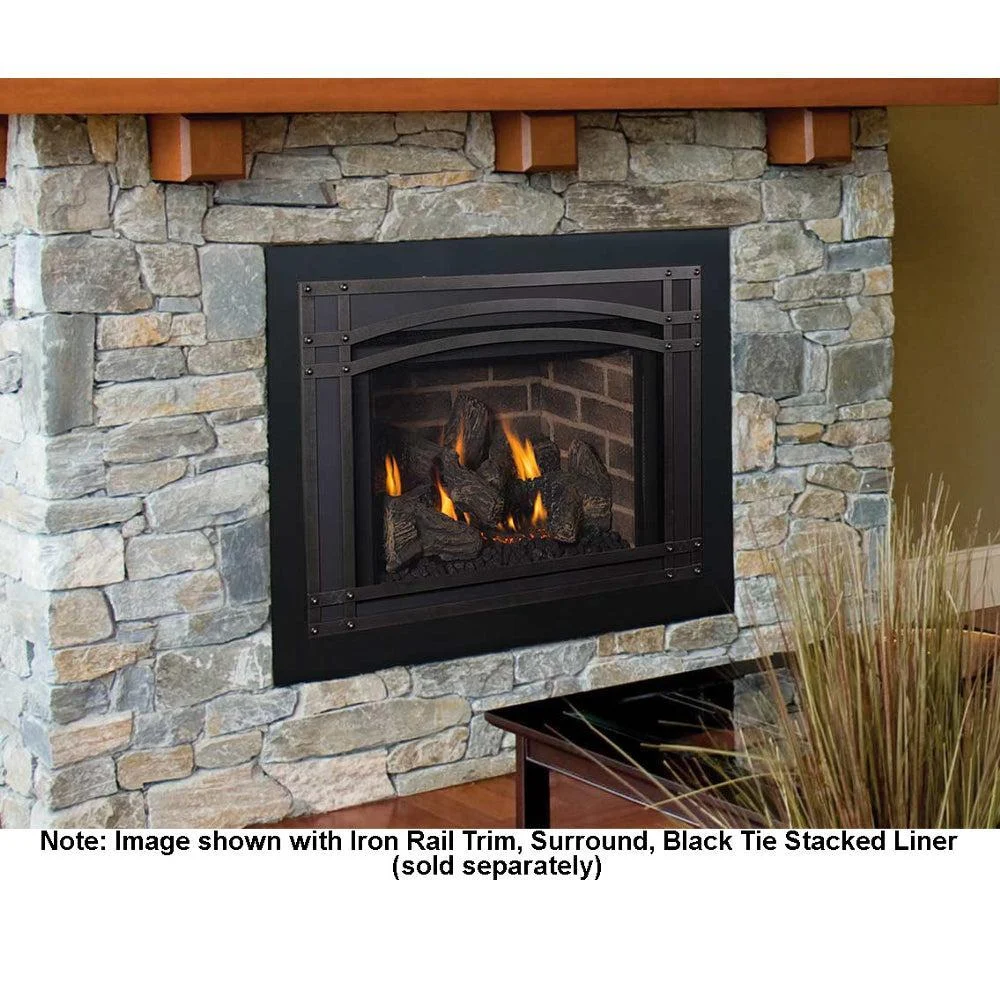

The Madison Park gas fireplace insert brings convenience and efficient heating to an existing wood-burning fireplace. Listed to fit zero-clearance factory-built and masonry fireplaces, the Madison Park gas insert turns your standard wood burning fireplace into a cost-effective heat source that displays a realistic gas fire for brilliant warmth and ambiance.
What’s Included
- Madison Park 27 Fireplace Assembly
- Remote Control
Not Included (sold separately)
- Interior Liners
- Facades
- Trim and Louvers
- LP Conversion Kit
Features
- Electronic ignition system with battery backup—still ignites and heats during a power outage.
- Outstanding heating efficiency for increased comfort and lower operating costs.
- Ceramic glass for optimum heat transfer and a protective screen.
- Beautifully crafted high-definition ceramic fiber log set.
- State-of-the-art burn technology provides the warm glowing appearance of an authentic fire.
- Choose between several distinctive styles of accessory façades to match the look of your existing décor (required).
- Interior selections consist of black reflective porcelain or a variety of ceramic fiber liners (required).
- Factory installed blower with six speed settings to fine tune your heating needs.
- Full-function remote control included (IPI/CPI, thermostat, flame height, blower).
Specifications
| Model | MPI27-B |
| BTU | Natural Gas: 25,000 – 18,000 Propane: 22,500 – 16,000 |
| Heating Capacity | 450 – 1,625 sq.ft. |
| AFUE Efficiency | 78% (NG) 75% (LP) |
| EnerGuide (P4) Efficiency | 73% (NG) 73% (LP) |
| Blower | 150 CFM |
| Fuel Type | Natural Gas |
| Certifications | ANSI Z21.88 / CSA 2.33, CSA/CGA 2.17 – 2017 and UL 307B |
| Design Style | Traditional |
| Control Type | Remote Control |
| Product Dimensions | W 26.625″ x H 17.875″ x D 14.875″ |
| Weight | 85 lbs. |
Technical Drawings
Minimum Fireplace Sizes Required
| Front Opening Width ** | 27″ (686mm) |
| Height | 18″ (457mm) |
| Rear Width | 17″ (432mm) |
| Depth | 15″ (381mm) |
** The front opening width of the fireplace must be maintained to a 3” depth into the fireplace firebox.
Minimum Clearances to Combustibles
| A = Mantel | 32″ (813mm) |
| B = Side Wall | 4” (102mm) |
| C = Mantel Depth * | 10″ (254mm) |
* See owner’s manual for additional mantel clearances and options.
Hearth Protection
| D = Vertical Distance from base of appliance to Hearth Extension | 0″ (0mm) | 4” (102mm) |
| E = Minimum Horizontal Distance from Front of Appliance | 10″ (254mm) | 0″ (0mm) |
