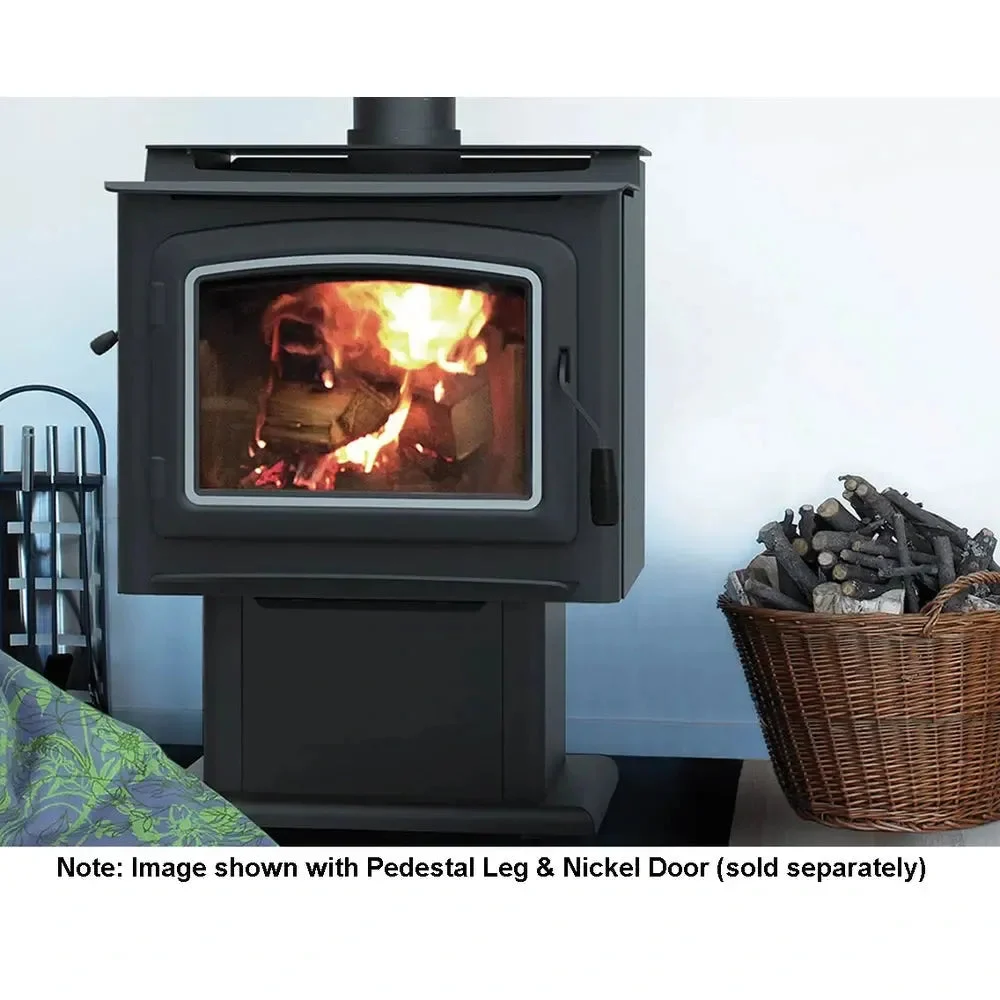

As elegant as they are efficient, the Lodge Collection wood burning stoves have raised the standard for home heating with their proven, Thermal Fin Technology (TFT™). This innovative cast-iron heat exchanger delivers the perfect amount of heat. Expansive, durable ceramic glass gives you unobstructed views of the fire and allows for easy heat transfer. A wide array of high-quality, versatile styling options means that Lodge Collection stoves will easily complement any décor.
What’s Included
- Grandview 300 Freestanding Wood Burning Stove Assembly
Not Included (sold separately)
- Blower
- Outside Air Kit
- Louvers
- Legs
- Pedestal
- Ash Drawer for legs or for pedestal
Features
- Spacious 3.0 cubic foot firebox interior accepts up to 21” logs.
- 100,000 BTU’s/hour and heats up to 2,000-3,000 square feet.
- Thermal Fin heat exchanger creates 32% more surface area than a standard stove design resulting in more heat entering the room.
- Air-boost timer automatically adjusts the air intake control making startup and reloading easier.
- Tall opening provides and expansive view of the burning fire.
- Ceramic glass for extra strength and optimum heat transfer.
- Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
- Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
- High-density firebrick retains heat longer, resulting in increased efficiency.
- One-touch control ensures easy operation and comfort.
- EPA-certified and Washington State-approved for clean and efficient operation.
Specifications
| Model | GV300GL |
| Fuel Type | Wood |
| BTU | EPA Test Load: 29,181 BTUs/hr. Cord Wood: u 100,000 BTUs/hr. |
| Design Style | Lodge Collection |
| Heating Capacity | Approx. 2000 to 3000 sq. ft. |
| Maximum Burn Times | Approx. 8 hours |
| Stove Pipe: Diameter Single Wall or Double Wall | 6″ (152 mm) |
| Log Length | 17″ W x 21″ D Max. (341.8mm W x 533mm D Max.) |
| Firebox | 18.2″ W x 21.23″ D x 13″ H Max. (462.28mm W x 539.25mm D x 330.2mm H Max.) Volume = 2.91 cu. ft. |
| Glass Viewing Area | 16-1/2″ W x 11-5/16″ H (419mm W x 287mm H) |
| Safety Listed | PFS TECO, Tested to UL 1482, ULC S627 |
| Product Dimensions | W 26.5″ x D 29.3125″ x H 36.125″ (Pedestal) |
| Weight | 454 lbs. |
Technical Drawings
Clearance
USA Clearance (Inches)
| Pipe | Installation | A (3) | B (1) | C (3) | D (1) | E (8) | F (1,4) | G (3,4) |
| Single Wall | Residential-Vertical Vent | 16 | 12-3/8 | 25-1/8 | 15 | 8 | 6 | 17 |
| Single Wall | Residential-Witd Elbow | 19-5/8 | 16 | 26-1/8 | 16 | 8 | 6 | 17 |
| Double Wall | Residential or Mobile Home-Vertical Vent | 11-5/8 | 8 | 23-1/8 | 13 | 8 | 5 | 16 |
| Double Wall | Residential or Mobile Home-Witd Elbow | 11-5/8 | 8 | 24-1/8 | 14 | 8 | 5 | 16 |
| Double Wall | Alcove-Vertical Vent | 13-5/8 | 10 | 26-1/8 | 16 | 8 | N/A | N/A |
| Pipe | Installation | H (2) | I (6) | J (2) | K (7) | L (5) | M | T (6) | U |
| Single Wall | Residential-Vertical Vent | 41-1/8 | 53-1/2 | 33 | 16 | 0 | 84 | 62-7/8 | N/A |
| Single Wall | Residential-Witd Elbow | 41-1/8 | 57-1/8 | 33 | 16 | 0 | 84 | 62-7/8 | 19 |
| Double Wall | Residential or Mobile Home-Vertical Vent | 41-1/8 | 49-1/8 | 33 | 16 | 0 | 84 | 61-7/16 | N/A |
| Double Wall | Residential or Mobile Home-Witd Elbow | 41-1/8 | 49-1/8 | 33 | 16 | 0 | 84 | 61-7/16 | 10 |
| Double Wall | Alcove-Vertical Vent | 41-1/8 | 51-1/8 | 33 | 16 | 0 | 72 | N/A | N/A |
Canada Clearance (Millimeters)
| Pipe | Instalation | A (3) | B (1) | C (3) | D (1) | E (8) | F (1,4) | G (3,4) |
| Single Wall | Residential-Vertical Vent | 406 | 314 | 635 | 381 | 200 | 152 | 432 |
| Single Wall | Residential-Witd Elbow | 499 | 406 | 664 | 406 | 200 | 152 | 432 |
| Double Wall | Residential or Mobile Home-Vertical Vent | 295 | 203 | 587 | 330 | 200 | 127 | 406 |
| Double Wall | Residential or Mobile Home-Witd Elbow | 295 | 203 | 613 | 356 | 200 | 127 | 406 |
| Double Wall | Alcove-Vertical Vent | 346 | 254 | 664 | 406 | 200 | N/A | N/A |
| Pipe | Installation | H (2) | I (6) | J (2) | K (7) | L (5) | M | T (6) | U |
| Single Wall | Residential-Vertical Vent | 1299 | 1410 | 1045 | 450 | 200 | 2134 | 1648 | N/A |
| Single Wall | Residential-Witd Elbow | 1299 | 1502 | 1045 | 450 | 200 | 2134 | 1648 | 483 |
| Double Wall | Residential or Mobile Home-Vertical Vent | 1299 | 1299 | 1045 | 450 | 200 | 2134 | 1611 | N/A |
| Double Wall | Residential or Mobile Home-Witd Elbow | 1299 | 1299 | 1045 | 450 | 200 | 2134 | 1611 | 254 |
| Double Wall | Alcove-Vertical Vent | 1299 | 1349 | 1045 | 450 | 200 | 1829 | N/A | N/A |
