Hargrove burner systems are the heart of the vented gas log set, providing the warmth and natural flame patterns that recreate the ambiance and beauty of a real wood fire, without the smoke, ashes, and mess.

what’s Included

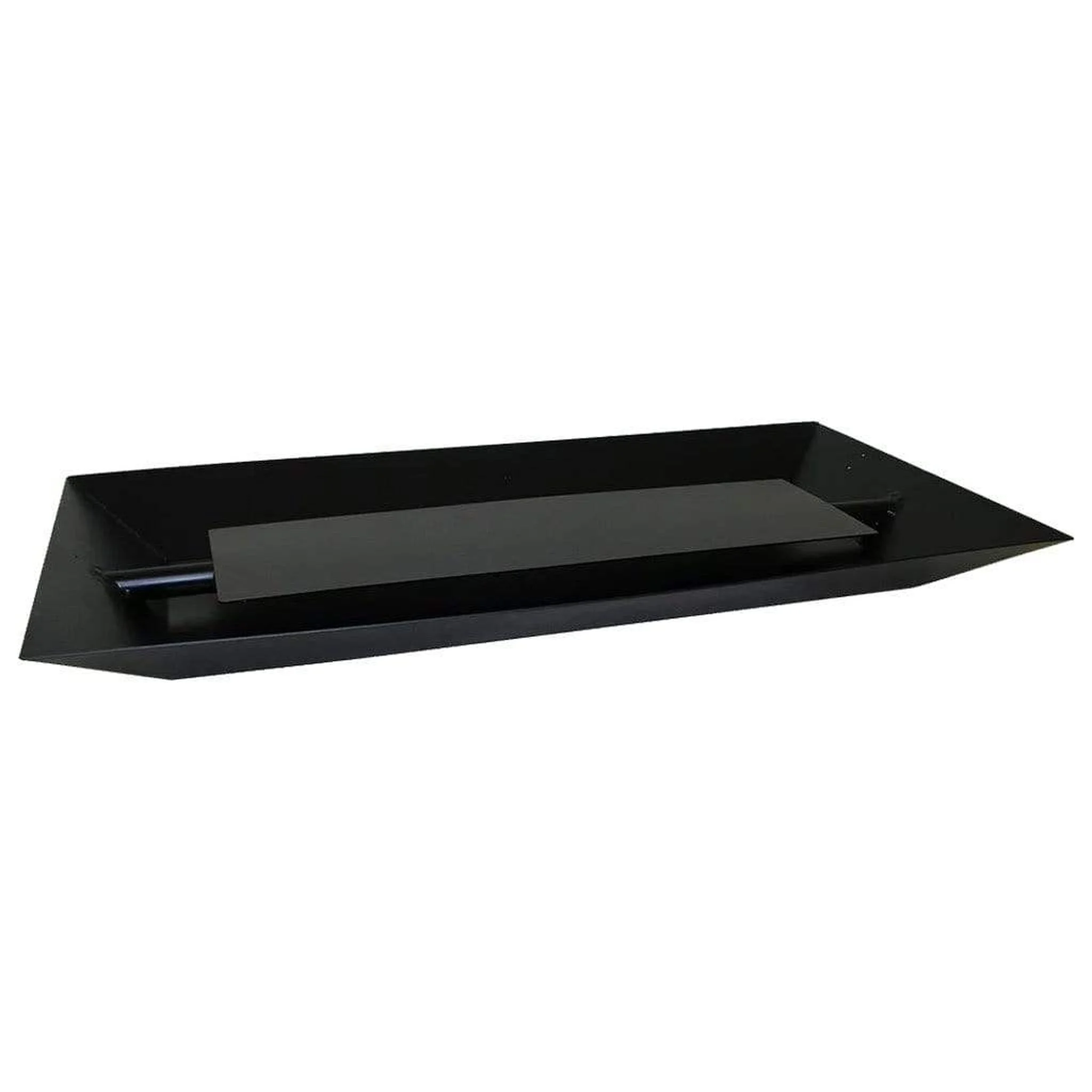

• Full Pan 18″ Vented Propane Burner With Manual Safety Pilot

Features

• Available in 18”, 24″, and 30″ sizes
• Great for Two-Sided or Peninsula fireplaces, but can be used for Single Side fireplaces
• Multiple media (fire glass, river stones, cannonballs) as well as log options
• Non-Certified
• Burner kits include: Full Pan Burner & Legs, Silica Sand, Rock Wool, Aluminum Connector, Volcanic Cinders.
• With Manual Safety Pilot
• Natural Gas BTU: 90,000
• Propane BTU: 60,000
• Compatible Log Size: 18″

Fire Glass/Beads Application

For the best results fill the Full Pan Tray 2/3 of the way with the Burner Pan Sand (Natural Gas) or Vermiculite (Liquid Propane Gas) then the rest of the way with Fire Glass or Fire Beads. It should take a maximum of 10 lbs. of glass to fill the remaining portion of the burner tray. More Fire Glass will be needed if you are covering the fireplace floor.

*Note: Full Pan Burner kits require a minimum of 14″ of depth.

Specification
