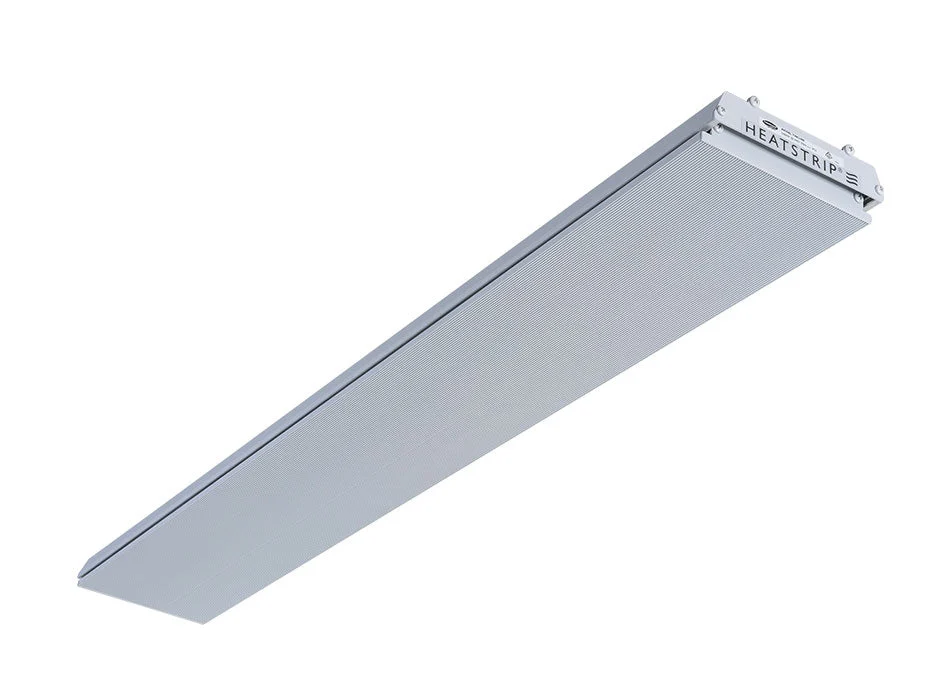

With superior technology and understated elegance, the Heatstrip Classic White stands as the premier heating solution for any stylish outdoor area. Its modern design and unique “off-white” color effortlessly complement the white ceiling of your patio.
What’s Included
- Heater
Features
- Electric radiant heater perfect for your protected alfresco area, pergola, verandah, café or difficult to heat indoor area.
- 2 Models available X-THH2400US-AW (2400W), X-THH3200US-AW (3200W).
- Stylish, sleek, unobtrusive design with Efficient, cost-effective heating providing gentle warmth.
- Corrosion-resistant to handle tough outdoor environments.
- Ideal Mounting Height: 2.1 – 2.5m, 7-8ft
- Max Mounting Height : 2.7m, 9ft
- 3-year residential and 2-year commercial warranty.
Specifications
| Item Number | X-THH3200US-AW |
| Product Type | Radiant Heater |
| Fuel Type | Electric |
| Voltage (V) | 240 |
| Power (Watts) | 3200 |
| Current (Amps) | 13.3 |
| Dimensions (mm/in) | 1780 x 165 x 48mm 70 x 6.5 x 1.9in |
| Weight (kg/lb) | 9kg / 20lb |
| Connection | Gang box |
| Heating Area | 5-6 m² / 54-65 ft² |
Positioning
For the majority of outdoor applications, the most effective method is to spot heat a table or similar area. The below diagrams provides an easy selection guide for the approximate model and quantity of heaters required to heat common residential table settings. Selections are based on Heatstrip Classic White being mounted at 2.4m / 7.9ft from the floor in an undercover fully enclosed outdoor area.
General recommendations for Heatstrip Classic White:
- Ideal mounting location: ceiling mounted, directly above area to be heated (eg. above a table), but can also be mounted on a wall and angled downwards. • Protection from winds by café blinds, screens etc. is highly recommended.
- The below table outlines the coverage of each HEATSTRIP® Classic White model, based on 3 different scenarios. For example, for an outdoor area that is protected from prevailing winds by walls, café blinds etc, Model X-THH2400US-AW will cover 3.6m² / 38.8ft² and Model X-THH3200US-AW will cover 6.4m² / 68.9ft².
| Model | X-THH3200US-AW |
| Indoor Protected (m²/ft²) | 8 m² / 86.1 ft² |
| Outdoor Enclosed (m²/ft²) | 6.4 m² / 68.9 ft² |
| Outdoor Exposed (m²/ft²) | 5.3 m² / 57 ft² |
Mounting
The installation of Heatstrip Classic is simple and easy with the standard mounting brackets supplied. For other locations, there are a range of mounting options available – (refer diagram). The Heatstrip Classic can be mounted directly to the ceiling; angled downwards on a wall; fitted flush with the ceiling; suspended on chains or poles; attached to beams/poles/umbrella’s; mounted end-to-end, or 2 units together.
- Minimum mounting height (including flush mount) 2.1m / 7ft
- Ideal mounting height (including flush mount) 2.1m – 2.5m / 7 – 8ft
- Maximum mounting height (including flush mount) 2.7m / 9ft
The mounting height of the electric heater can have a significant impact on performance. For mounting heights higher than the ideal range, we recommend the use of wires/chains or optional extension poles to reduce the height and ensure the heater is within the ideal range. Heater performance may be affected if outside this range. *Chain/wire not included
