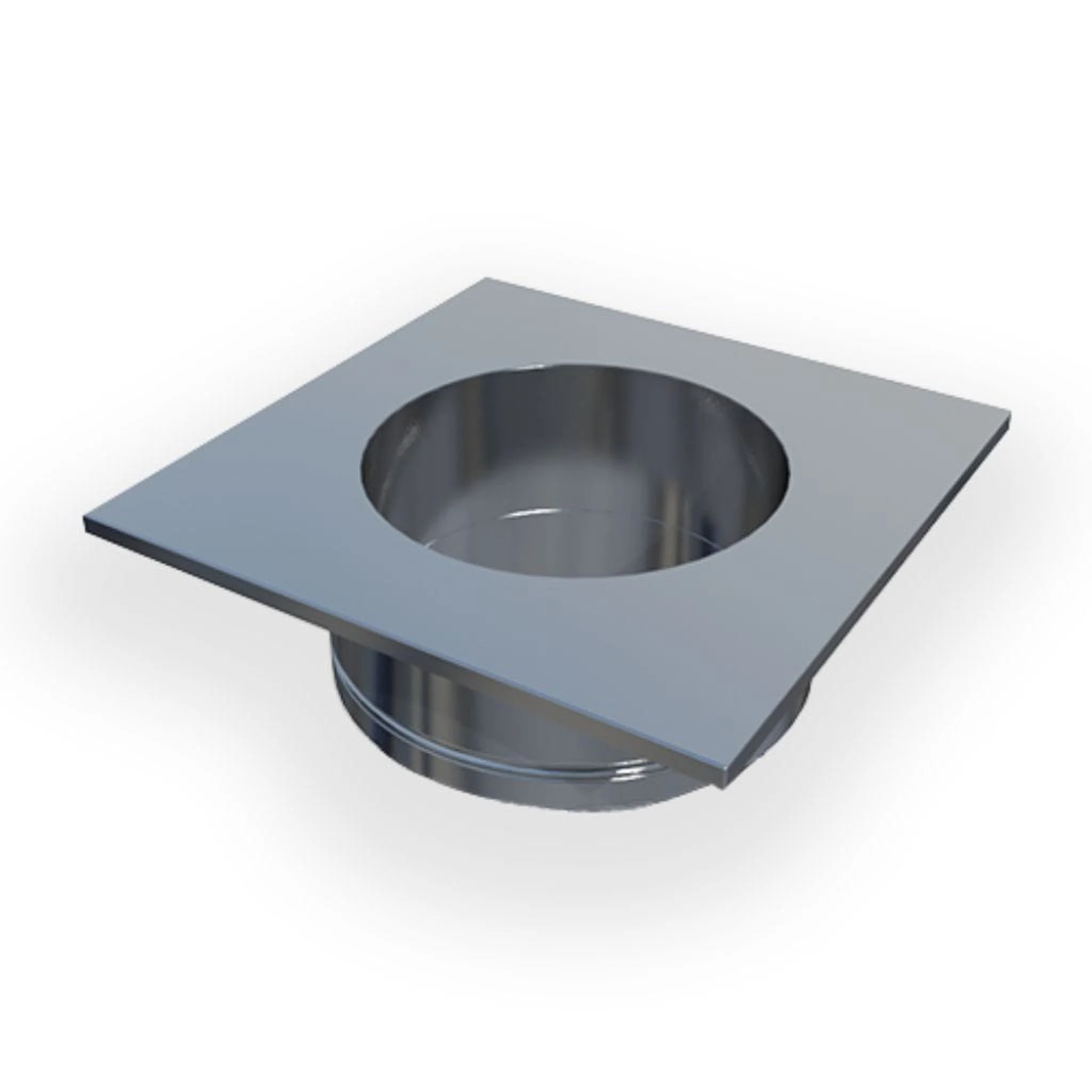

The ASCA Steel Chimney Adapter is used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney. It is mounted at the chimney termination point.
The adapter consists of a square mounting plate to support the fan, and a round collar that can slide into the chimney for a tight fit. The outer diameter of the collar is 1/8″ smaller than the inner diameter of the chimney. The 5″ collar eliminates the need to secure the adapter externally.
Features
- Can be used on most round chimneys
- Integrated support allows venting of inner walls
- Easy to install without use of tools
Specifications
| Item Number | 222.0400.3011 |
| Size | 11″ |
| Material | Stainless Steel 316L |
| Collar Size | 1/8″ (3 mm) less than the chimney ID |
