Keystone B-Vent Fireplaces combine modern technology with traditional venting to create the appearance and performance of a conventional fireplace but with the convenience of gas.
Our B-Vent systems let you prolong the flicker of the flames without overheating your room. The BVD-34 input is 21,000 Btu; the BVD-36 is 25,000 Btu; and the Premium BVP-42 is 30,000 Btu. The hand-painted ceramic fiber Log Set features large logs, arranged to fill the fireplace and complement the flames.

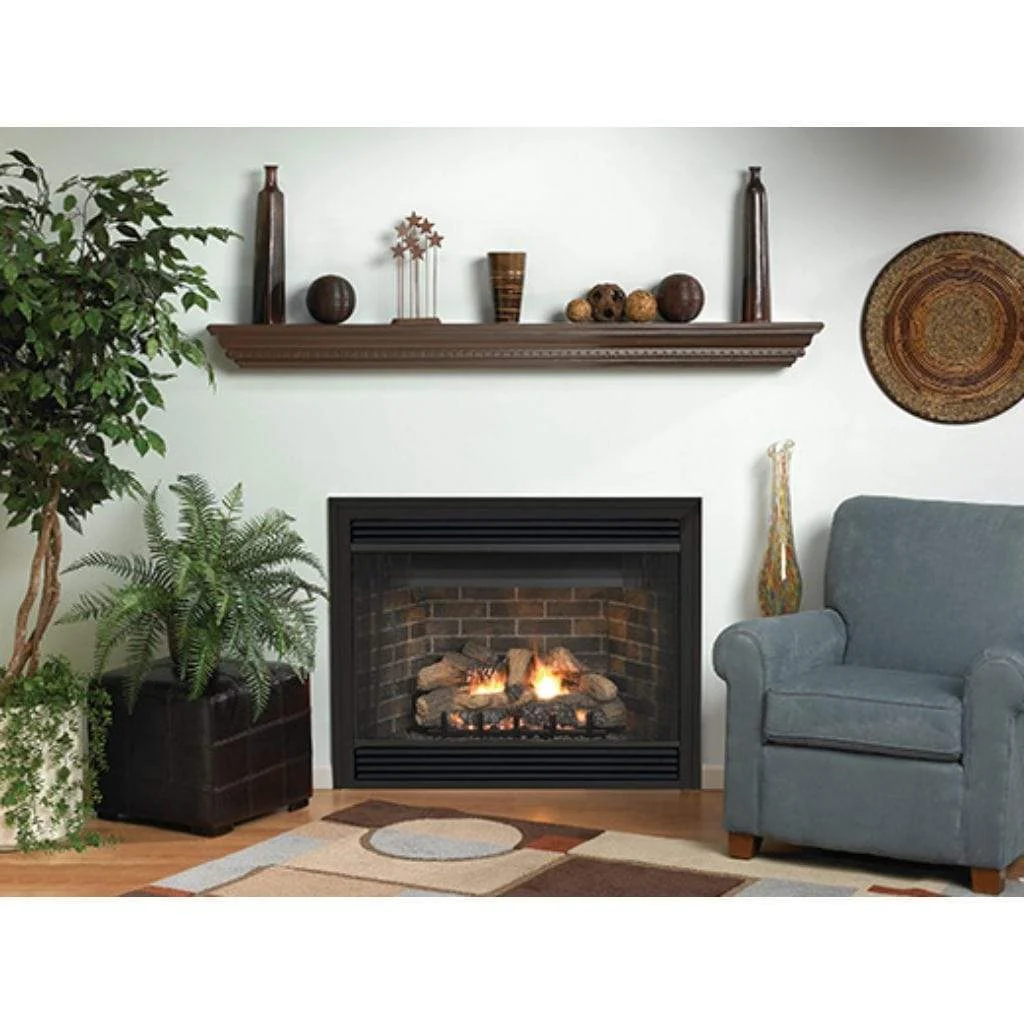

Keystone Deluxe Fireplace (BVD)
The Deluxe 34- and 36-inch B-Vent fireplaces include hand-painted logs artfully arranged on our more compact Contour Burner. Keystone fireplaces come with matte black slat louvers (except flush front models), and operable curtain screens.
These B-Vent fireplaces also feature hem-bent seams that provide a better seal while eliminating dozens of screws and fasteners. The result is a lighter, more rigid box that’s easier to install.
What’s Included
- Keystone B-Vent Deluxe Fireplace
- Junction Box
- Log Set
Not Included (Sold Separately)
- Liners
- Accessories
- Control Options
- Bi-fold Glass Doors
- Decorative Louvers
- Door Frame and Doors
- Outer Frame and Bottom Trim
- Propane Gas Conversion Kit
Features
- Zero Clearance Certified
- Remote Control Options
- Louvered and Flush Models
- A Variety of Decorative Accessories
- Millivolt and Intermittent Pilot Models
- Natural Gas (Propane conversion available)
- Blowers not available on Flush Face models
- B-Vent Fireplaces do not require Barriers − Barriers are available
Specifications
| Model | BVD34 |
| Input Btu/Hr Maximum | 21,000 |
| KWH (Maximum) | 6.2 |
| B-Vent Size | 4″ Diameter |
| Type of Gas | Natural Gas | Propane |
| Ignition | Millivolt |
| Vent Type | B-Vent |
| Installation | Zero Clearance |
| Orifice (NG) | #44 (.086) P-252 |
| Air Shutter Opening (NG) | 1/8″ (3.2mm) |
| Orifice (LP) | 1.35mm P-289 |
| Air Shutter Opening (LP) | 5/16″ (7.9mm) |
| Gas Inlet Shut-Off Valve (Pipe) | 1/2″ NPT |
Dimensions
| Height without standoff | 33″ |
| Width | 37″ |
| Depth | 15″ |
