A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

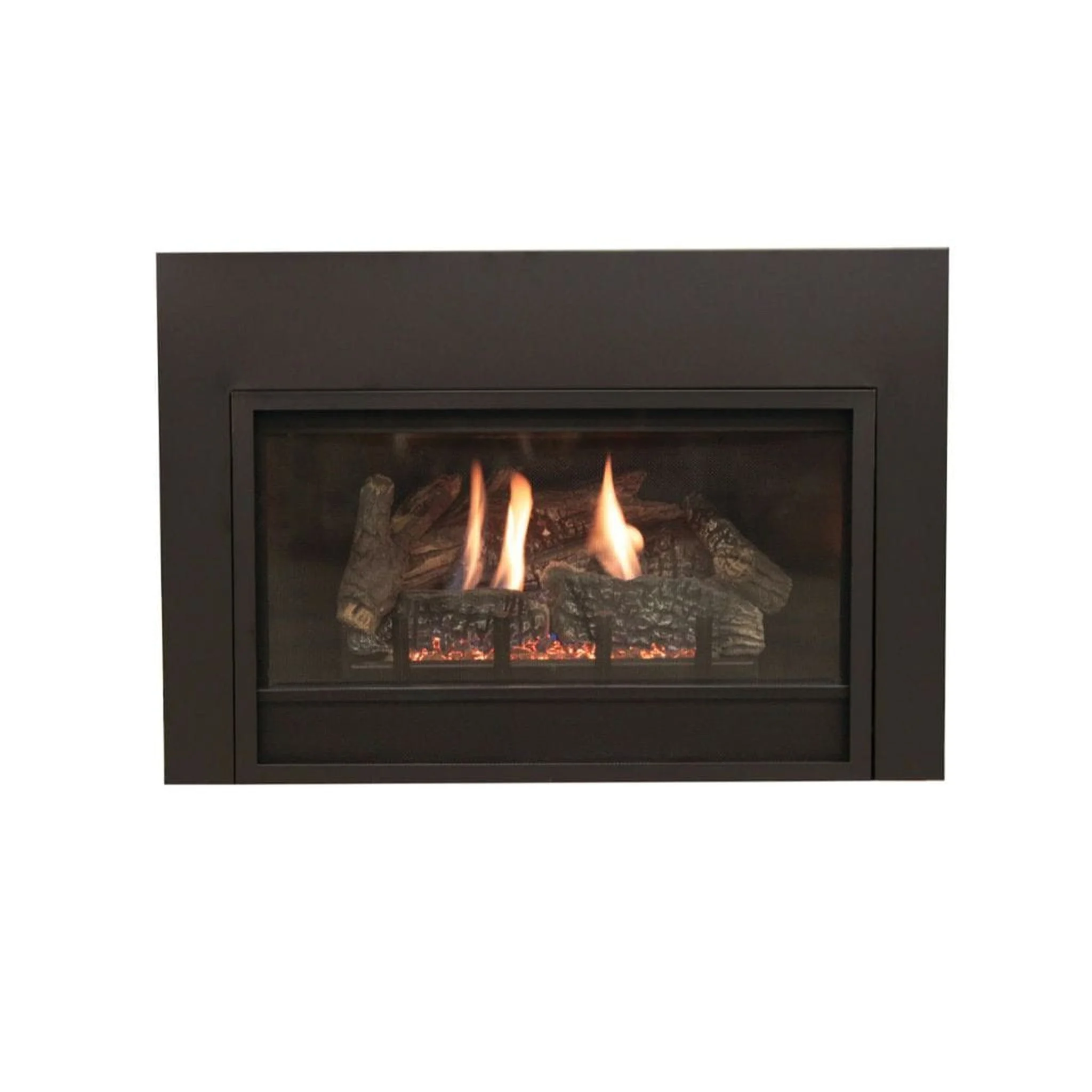

Innsbrook Direct-Vent Insert

A Direct-Vent Fireplace Insert turns your existing wood-burning fireplace into an efficient gas-fired heat source.  Direct-Vent Fireplace Inserts are classified as zone heating appliances. Zone heating is inherently more efficient than your existing wood-burning fireplace or your central furnace.

Innsbrook Direct-Vent Inserts (DVC)

Our Innsbrook Direct-Vent inserts feature optional liners and hand-painted ceramic fiber logs, nestled atop the variable flame height burner, to create an exceptionally attractive traditional fireplace. With inputs of 20,500 Btu, 26,000 Btu, and 28,500 Btu, the Direct-Vent insert’s unique Slope Glaze Burner produces natural flickering flames that dance and delight – warming your heart as it warms your soles.

What’s Included

• Innsbrook Clean Face Fireplace Insert
• Blower
• Log Set
• Ceramic Glass
• Barrier Screen

Not Included (Sold Separately)

• Surround (Required)
• Decorative Liners
• Control Options
• Bottom Covers
• Decorative Fronts
• Gas Conversion Kit
• Cast Iron Surround
• Adaptor for Cast Iron Surround
• Custom Surround & Shroud

Features

• Good efficiency – 60 to 80%
• May be used as primary heat source
• Separates room air from combustion air
• Can operate with a remote or thermostat
• Most systems can provide life-saving heat during a winter power outage
• Good heat output with thermal transfer through the glass and air circulation
• We offer our traditional Innsbrook Direct-Vent Inserts in three sizes – small, medium, and large – to fit most wood-burning fireplaces
• Choose Millivolt ignition with standing pilot to provide heat, even in the absence of electric power, or Intermittent Pilot, which saves even more energy
• IP systems can operate with a standing or intermittent pilot during power outages
• Innsbrook Direct-Vent inserts feature optional liners and hand-painted ceramic fiber logs, nestled atop the variable flame height burner, to create an exceptionally attractive traditional fireplace
• Direct-Vent insert’s unique Slope Glaze Burner produces natural flickering flames that dance and delight – warming your heart as it warms your soles

Specifications

Dimensions
